>Rough boring heads 75º and 90º Approach

  • Dual insert boring head design allowing heavy duty roughing.
  • 12 different boring head sizes cover a diameter range from 24 mm. up to 500 mm.
  • Integral insert pocket design for boring heads sizes 22, 27, 32, 42 and 54.

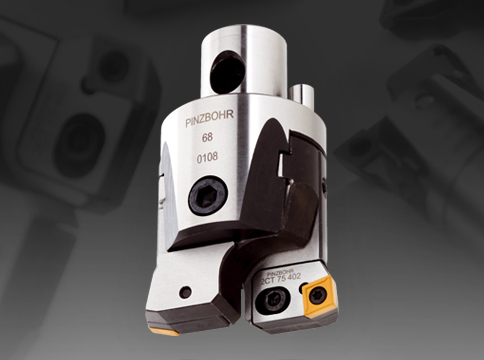

  • Insert cartridge design for boring heads sizes 68, 85, 100, 200, 300, 400 and 500.
  • Boring heads and cartridges available for different insert styles (CC.., CN.., TC.., TP.., WC.., etc).
  • Simultaneous and synchronized adjustment of the two slide blocks having the insert pockets.
  • Safety set assembly designed to prevent mechanism damage or breakage if the adjusting screw is forced while having boring head locked or in its range limits.

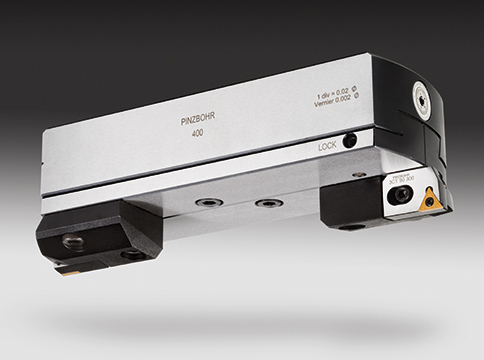

  • Large boring heads (sizes 300, 400 and 500) have a high precision adjustment through a graduated dial featuring 0.002 mm. readout precision on diameter.
  • All cartridges have their radial adjusting screw for individual setting of them over the slide block.
  • Change to different insert style or approach angle by simply exchanging the cartridges.
